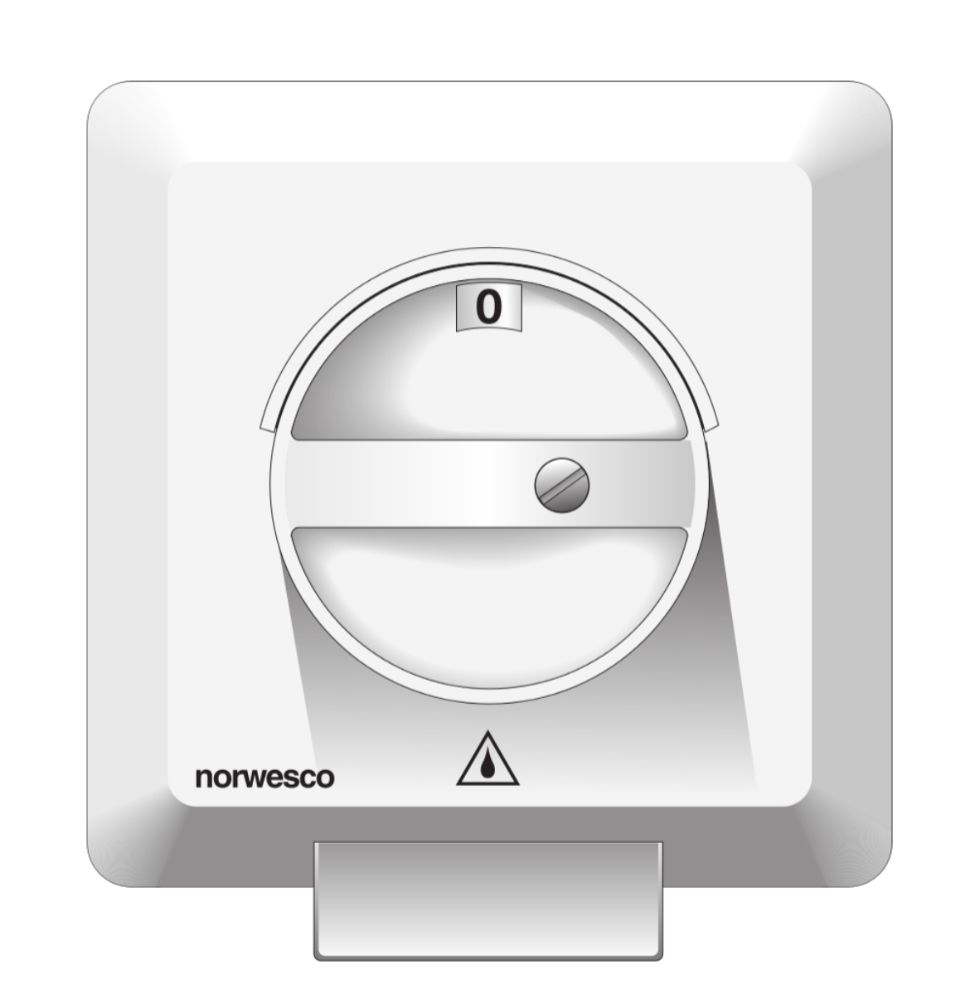

Rotary switch

Protection class IP23 with cable clamp.

Ordering data for recessed mounting13 A

E-No.  Type  Version Protection class wxhxd
31 640 12 TMB 16-1 1-pol IP 23 100x110x77,5 mm

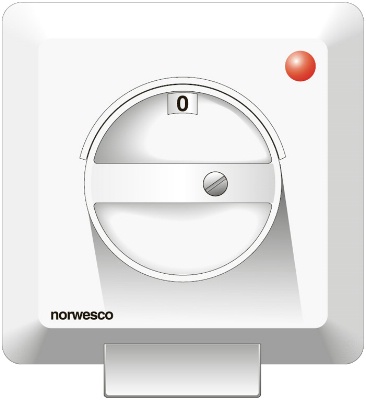

31 640 13 TMBL 16-1 1-pol + lamp IP 23 100x110x77,5 mm

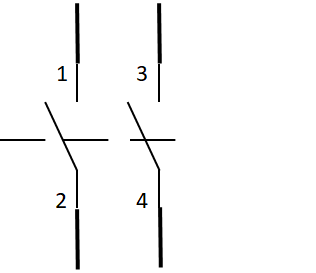

31 640 14  TMB 16-2  2-pol  IP 23  100x110x77,5 mm
31 640 15  TMBL 16-2  2-pol + lamp  IP 23  100x110x77,5 mm

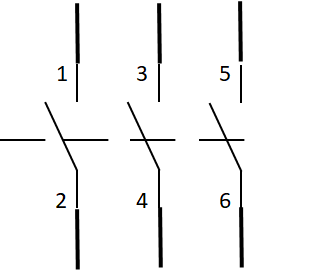

31 640 16  TMB 16-3  3-pol  IP 23  100x110x77,5 mm
31 640 17  TMBL 16-3  3-pol + lamp  IP 23  100x110x77,5 mm



Ordering data for surface mounting16 A

E-No.  Type  Version  Protection class wxhxd
31 640 18  TMBU 16-3  3-pol  IP 23  100x110x54 mm
31 640 19  TMBUL 16-3  3-pol + lamp  IP 23  100x110x54 mm



Cable clamp for 2 cables

E-No.  Type  Version
31 640 20  Cable clamp For two outgoing cables
