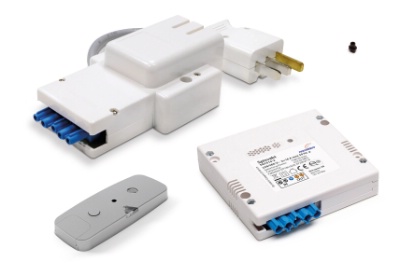

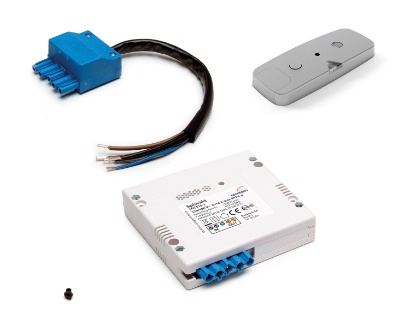

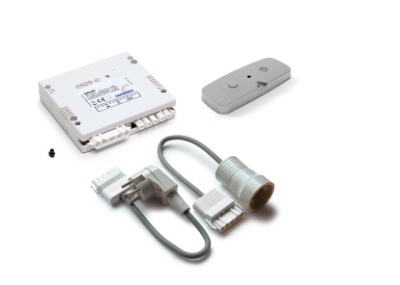

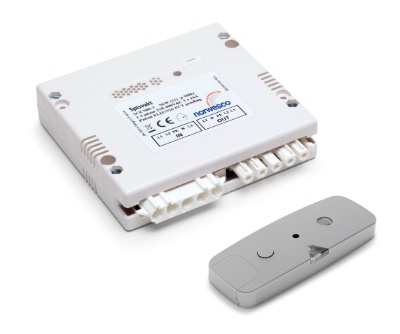

StoveGuard

WL-series with wireless sensor

The stove guards in WL-series protects the homes most flammable area and adapts intelligently to the users cooking method. It supports independent living when the use of the stove is risky, for example the elderly, people with illness or with learning difficulties. The stove guard detects dangerously high temperatures and temperature increases.

The stove guars has a 3,5 mm socket on the side where you can connect an exteranl alarm system and the output has a potential-free contact.

Complete kit.

Order data for fixed connection

E-No.	Type		A	V	Weight	wxhxd control unit	wxhxd connecting box
13 306 31	StoveGuard WL 230S		25	230	1,025 Kg	35x95x15 mm	130x130x30 mm
13 306 30	StoveGuard WL 400S	Avsedd för spis internt Y-kopplad (stjärnkopplad)	16	400	1,025 Kg	35x95x15 mm	130x130x30 mm

Order data for connection with 1-Phase Norwegian socket 2P+PE

E-No.	Type		A	V	Weight	wxhxd control unit	wxhxd conneting box
13 306 32	StoveGuard WLF 230S		25	230	1,025 Kg	35x95x15 mm	130x130x30 mm

Order data for connection with 3-Phase Perlix socket 3P+N+PE

E-No.	Type		A	V	Weight	wxhxd control unit	wxhxd connecting box
13 306 29	StoveGuard WLP 400S	Avsedd för spis internt Y-kopplad (stjärnkopplad)	16	400	1,025 Kg	35x95x15 mm	130x130x30 mm
