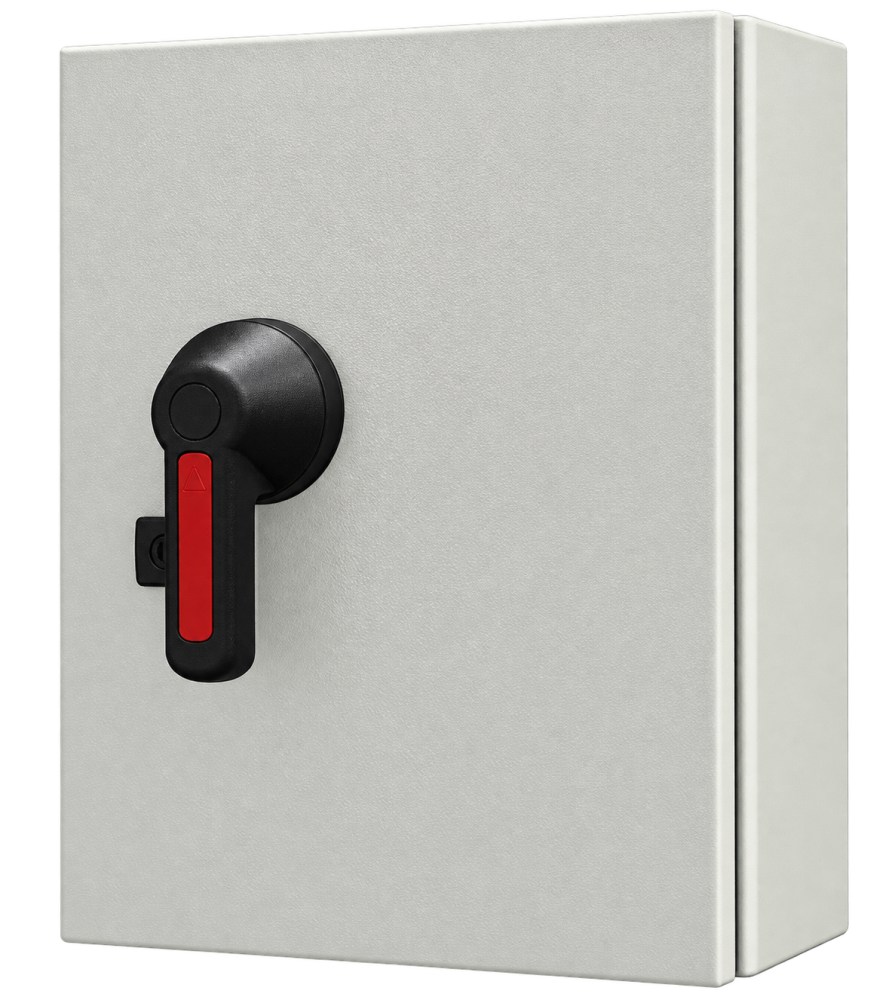

Enclosed switch 80-250A
front operated switch disconnector, metal enclosures
- Robust safety switches for harsh environments
- The switches have encapsulation of powder coated steel sheet
- AC23A, 415V
- IP65
- Cable entries 2 x FL21 on the top and bottom, two blind glands are included
- Prepared for connection to aluminum cable
- Al/Cu-terminal clamps are included, see cable terminal area in the chart bellow.
Enclosure dimensions (w x h x d): 300x400x200 mm (80–125A),
Enclosure dimensions (w x h x d): 400x600x250 mm (160–250A),
Colour enclosure: Grey, H=auxiliary contacts, Front operated padlockable handle to off position.
